SKU: AX40001

$999.99 $1,699.99

In stock

> >

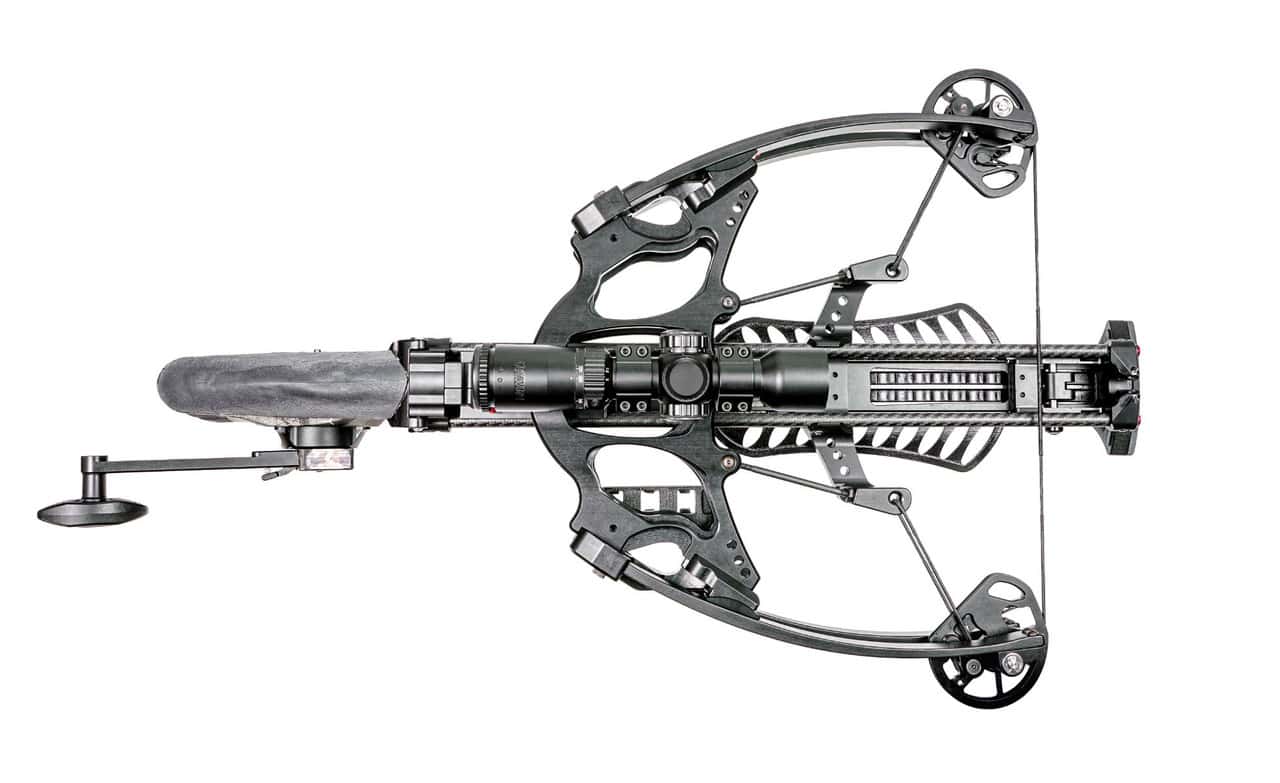

AXE Crossbows AX405

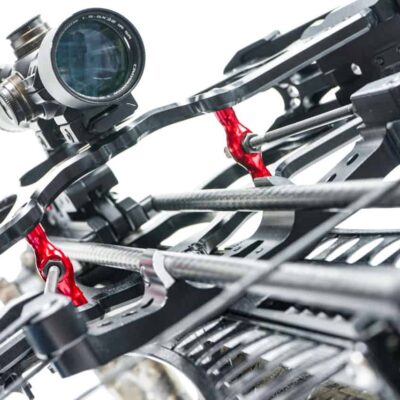

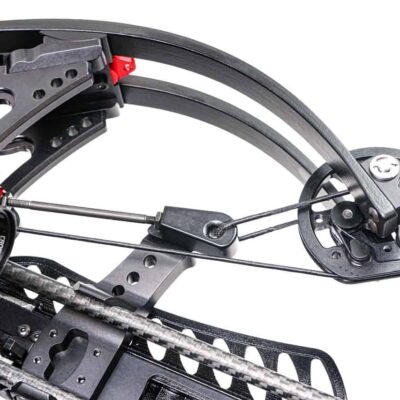

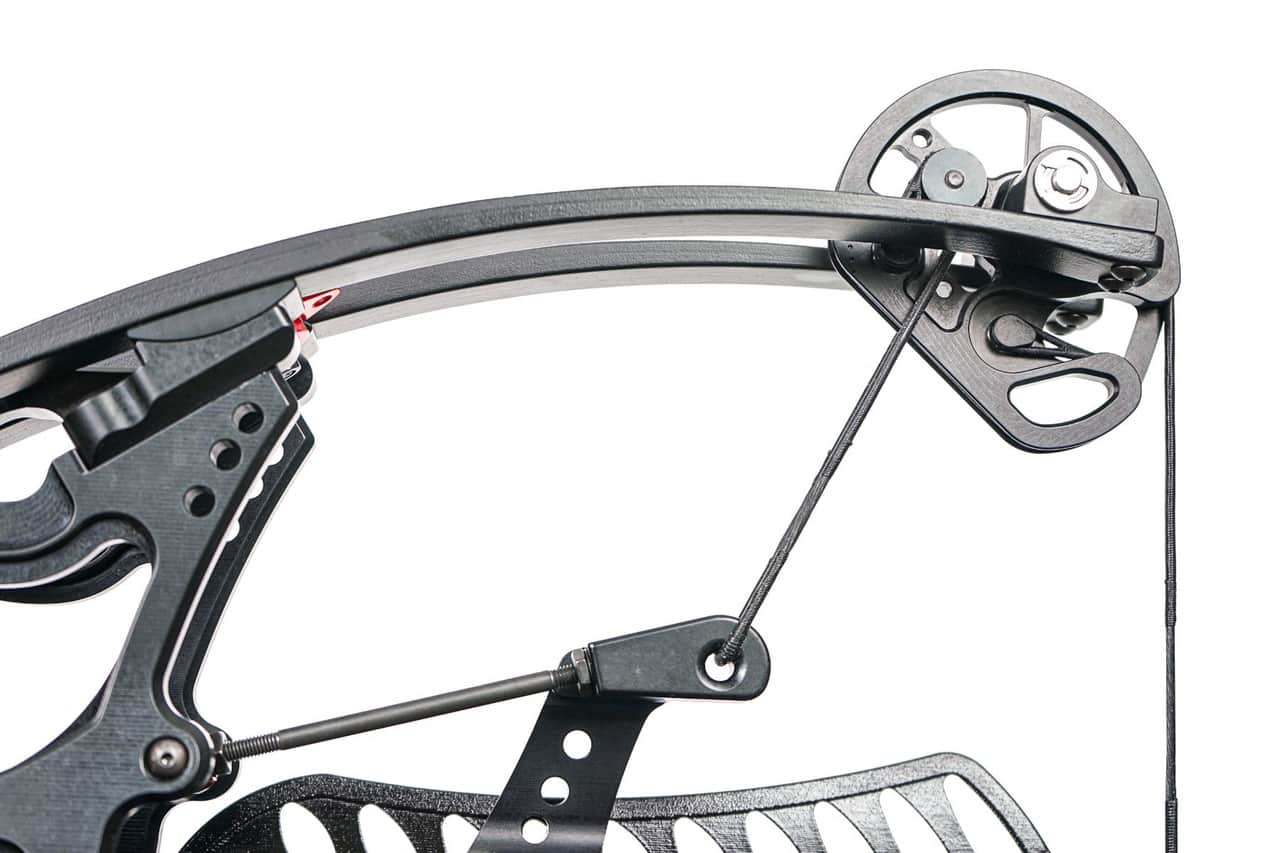

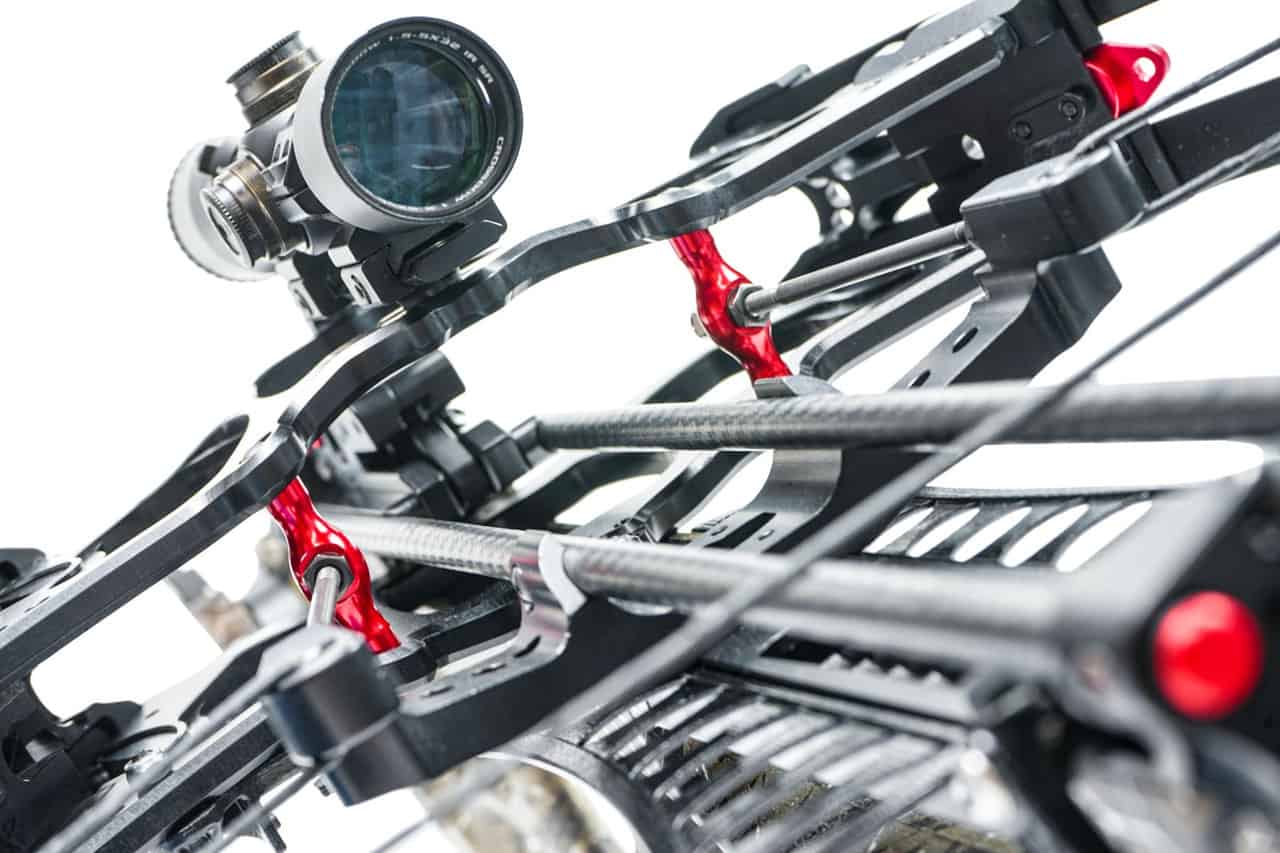

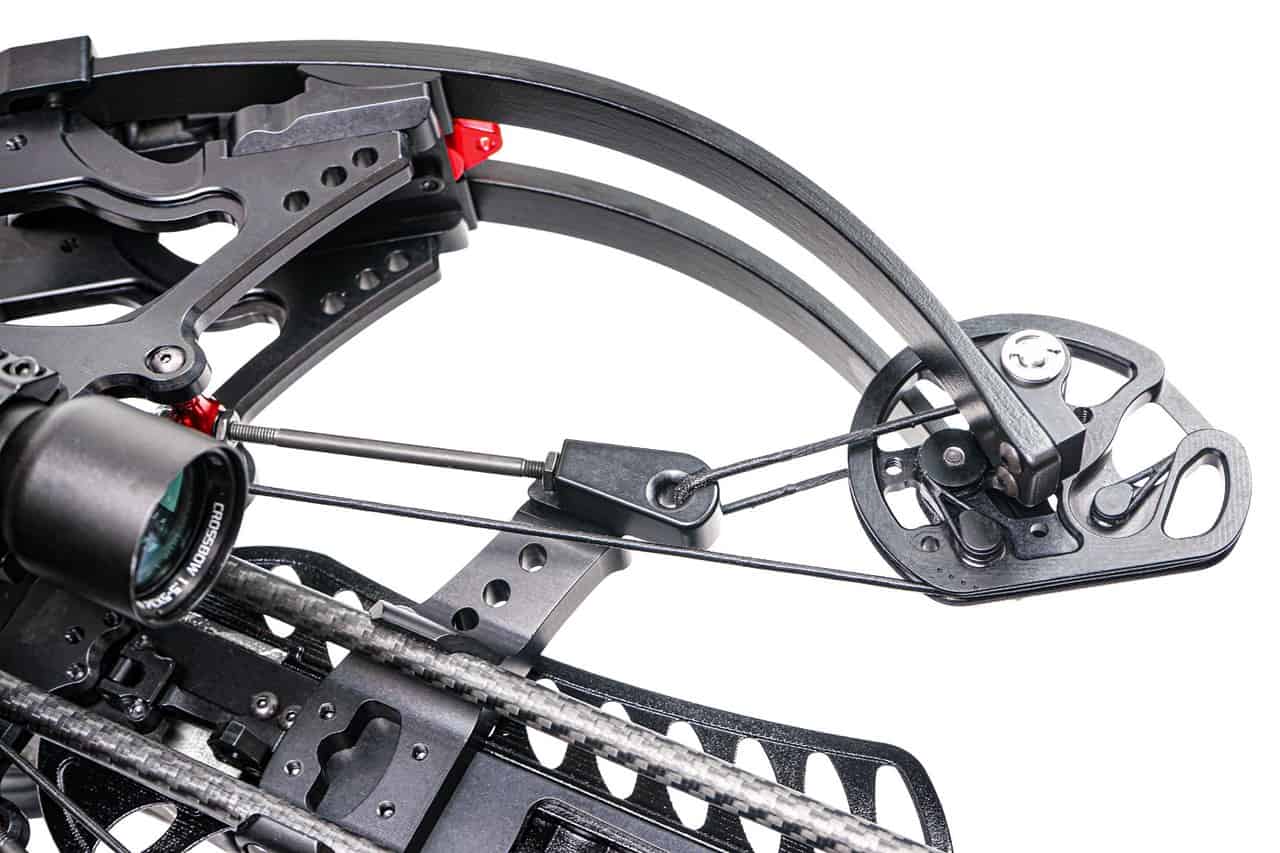

Compact by design, but colossal with its features, the  AX405 crossbow is best characterized as; Performance. Optimized. At a compact and maneuverable 27.75-inches long and 10-inches axle-to-axle (cocked) the weight of the crossbow is centered over the shooter’s hand by way of a balanced shoot-through stock and riser design and reverse limb system. This configuration empowers the most efficient part of the AX405 210-pound split limbs to deliver bolt speeds in excess of 400 feet-per-second, from just 13-inches of power stroke. A proprietary cam system is linked by cables that run parallel to each other, rather than from the top of one cam to the bottom of the other. This unique configuration eliminates cam-lean, limb torque and is further enhanced by an exclusive cable brace that engages the riser to aid in the limitation of flex away from the center of the crossbow. When combined, these features allow the string to move along the same plane throughout the entire power stroke. Unlike the one-piece aluminum rail concepts of conventional crossbow designs that rob speed, efficiency and bolt life, the stock of the AX405 eliminates the rail and utilizes dual carbon guide rods along the entire length of the stock. When combined with the shoot through riser and a roller rest on the bow’s front end these features create a free-floating arrow system that mitigates contact, friction and torque along the arrow’s entire path further enhancing efficiency, accuracy and speed output. Comes with a multi-range reticle scope with markings for 20-100 yards in 10 yard increments. Red/green illumination for different lighting conditions helps you see the reticle clearly. The scope features a wide field of view and is both shock and fog proof.

AX405 Crossbow Specs:

  • Cocked Axle to Axle: 9.95″
  • Un-cocked Axle to Axle: 14.5″
  • Power Stroke: 13″
  • Limb Weight: 210 lbs.
  • Trigger Pull: 3.7 lbs. (AXE 2 Stage Sliding Trigger Assembly)
  • Overall Height: 10.4″
  • Overall Length: 27.75″ (Foot Peg Collapsed)
  • Overall Length: 32″ (Foot Peg Extended)
  • Weight: 9.7 lbs. (Without Scope)
  • Speed: 405 fps

WARNING! To avoid serious injury and learn about safe hunting techniques, users must read the instructions and watch the videos at prior to shooting any crossbow bolt.

SKU: AX40001 | UPC: 818322014250


  • Adjustable Butt Stock
  • Adjustable Cheek Comb
  • Shoot Through Riser
  • Balanced Center of Mass (Centered of the Trigger / Hand Grip)

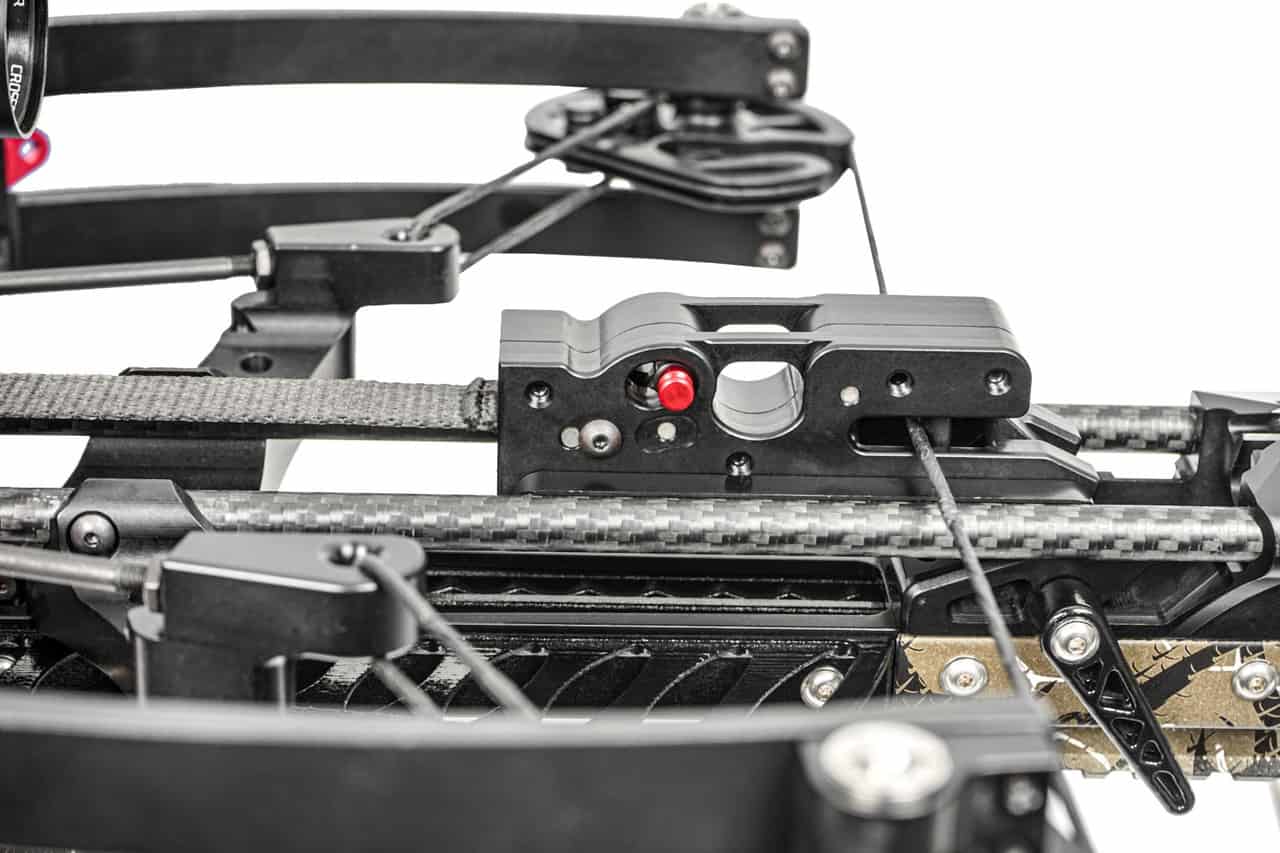

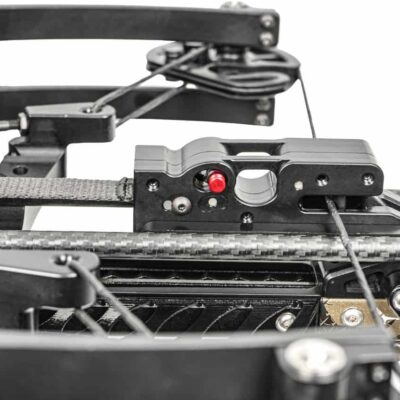

  • Integrated Crank with Cock / De-Cock Feature (Adjustable handle position)
  • Trigger (3.7 lbs. and zero creep)
  • Safest Trigger on the Market (Automatically resets to safe every shot)
  • Full Capture, Tunable Roller Rest
  • 85% Cam Efficiency (Best in Market)
  • Ergonomic Chassis Design
  • Integrally Mounted 3 Arrow Quiver
  • Multi Range Illuminated Reticle Scope
  • Adjustable Foot Peg
  • (3) AXE micro diameter bolts with 100 grain practice tips



What can I say about the Axe405… Big Performance in a small package. This bull-pup style crossbow, shoots fast, smooth, quiet, and pinpoint accurate… It is well balanced and easy to shoot…! My hat go’s off to Feradyne for making a great crossbow….!

Posted by Tom Booth on Sep 29th 2022

In the past I was a Pro Staff Shooter for other manufactures with the slide type bows. I can honestly say the engineering on this bow is the best I have experienced. Where others use a quad cable system, the AX405 uses one cable per side and balances the cam perfectly without twisting four cables to achieve zero cam lean. The crank system is the most user friendly in comparison. No levers, locks, just crank until the trigger box stops and load the arrow. Back crank releases the trigger and down the rail it goes for the next shot. This bow is rock solid and when shouldered it balances the best I have ever experienced. Accuracy? Better not shoot back to back or you may be buying more arrows. Before you buy another brand, go shoot this bow. Simply a gem in all ways.
Aim Small, Miss Small

Posted by George on Sep 23rd 2022

This is the fastest bow I have ever seen.

Posted by Anonymous on Apr 8th 2021

The bow is great. Very compact and very fast. Three small issues is a little on the heavy side, the arrow/bolt often pops out of the rest if not laying flat, and only takes the specific arrows/bolt from the manufacturer. It is otherwise a great bow and I would recommend it to anyone.

Posted by Jarad on Feb 3rd 2021
